PET Film 10.1 Inch Palm Rejection Touch Foil Screen 89% Light Transmittance

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-MCW-TFS-10.1-STM
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000pcs/month
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

PET Film 10.1 Inch Palm Rejection Touch Foil Screen 89% Light Transmittance

Master Touch 10.1 Inch Accurate Touch Palm Rejection Touch Foil Screen

1. Product Description

Master Touch touch film is stable and interactive, supporting single, dual, multi touch and supporting palm rejection. MST STM Series is small size touch foil, ranging in 7 inch to 32 inch. Our foils can pass through maximum 10mm cover glass, low surface resistance means good electrical conductivity, and customer can eliminate noise by grounding.

2. Technical Datasheet

Part No.:	MST-MCW-TFS-10.1-STM
BOM Code:	1.11.101.01.0000
Project Code:	M101S
Structure:	Film+Micro Copper Wire+Film
Copper Wire Diameter:	15 microns
Base Material:	PET Film
Controller IC:	STM Series
Driver Type:	Driver-free, plug-n-play
Communication Interface:	USB2.0/3.0
Working Voltage:	5V
Standard USB Cable Length:	1,500mm
Thru-Glass Capability:	Max. 6mm
Screen Ratio:	16:10
Foil Size:	242.60*158.05mm
Active Area:	219.00*137.00mm
Controller Size:	87.0*47.0mm
FPC direction:	Short side
Light Transmittance	≧89%
Lamination Method:	Wet Lamination (OCA)
Lamination Substrate:	Glass/Acrylic/PMMA or other non-metallic material
Inductive method	Improved projected capacitive technology
Touch accuracy	±1mm
Touch Points	1~12 points (adjustable)
Calibration method	Automatic
Response time	<10ms
Frame scan frequency	120FPS
Lifetime	9 Years
Temperature Range	-15℃ to + 75℃
Working Environment	0~ 95%RH(Unaffected by condensation)
OS compatibility	Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
	MAC OS X Lion
	Linux (Kernel version above 3.8)
	Above Android 4.0 (Kernel version above 3.1)
EMC	EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption	<0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

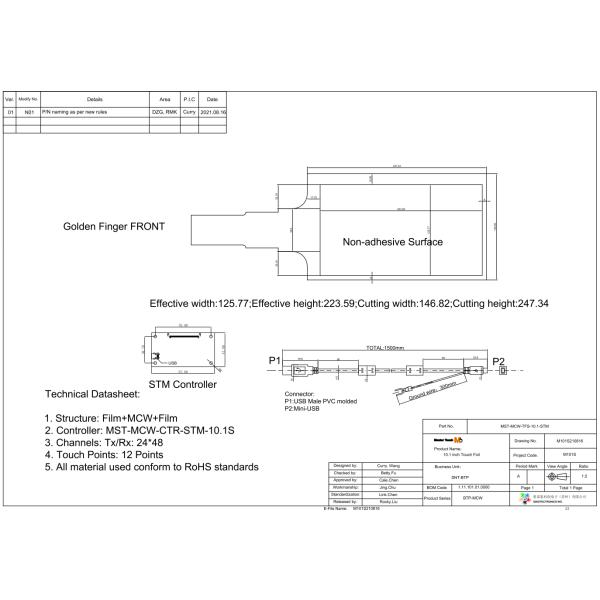

3. Drawing

4. Details

5. Advantages of MST Touch Film

1. Light in Transportation	8. Work with projection film
2. Easy DIY Lamination	9. Cost-effectiveness
3. Smaller gap lamination	10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof	11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm)	12. Outdoor Application
6. Lowest surface resistance	13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.21.35m (LH)	14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window	Outdoor Digital Signage
Industrial Touch Panel	Interactive Black/White Board

7. How is a touch foil made?

8. How does the touch foil work?

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

9. FAQ
